Tuesday, November 18, 2008

More Keywork

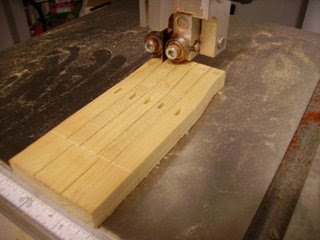

The keys are cut out on the bandsaw, sections at a time, and then a coping saw fited with a wire blade to cut out the sharps.

Bloodwood keyplates are cut and scraped and buffed to a polish.

Time to start gluing up the jack-arm assembly with these great little spring clamps I bought-a 6 pack for one dollar! All of them glued to a little foot that keeps them at roughy 4 degrees tilted back. I'm gluing every other one to make it a little easier to get at them. Every so often I take my square to check for true.

Wednesday, November 5, 2008

Keyboard cont.: Balance pins and keyplates

The key rack will require balance pins. The short length of keys means that the balance point lies under key plates, and thus can be no higher than the thickness of the key tails. I cut small 2mm diameter nails in half and then off with their heads! The round thing in the foreground is a magnet to pick up the iron filings as I go along.
Here the new, cut, rounded over, and polished balance pins are press fit through the felt padding and into predrilled holes along the balance rail (seen here not yet fully set in place). You can also see the key plate material here which I believe is African Padauk.

The key holes must be opened up at the rocking points on the top and bottom. I used a hardened spring with a bolt through the center for a handle to facilitate this. It essentially presses the wood fibers laterally, and I understand this is a traditional method for opening this hole.
